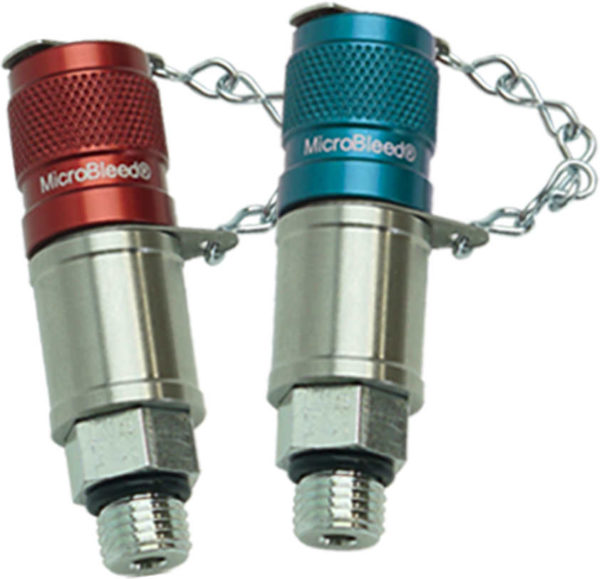

Microbleed Valve

MicroBleed valves are the most versatile valves in the world, with regard to form and function. The patented MicroBleed valves are designed to engage with the ECM or the PressureCheck assembly under full system pressure, safely and easily.

MicroBleed’s internal mechanism is protected by a tough, color-coded (ColorGard) dust cap: a red cap identifies a potential stored energy zone, while a blue cap identifies an energy discharge zone.

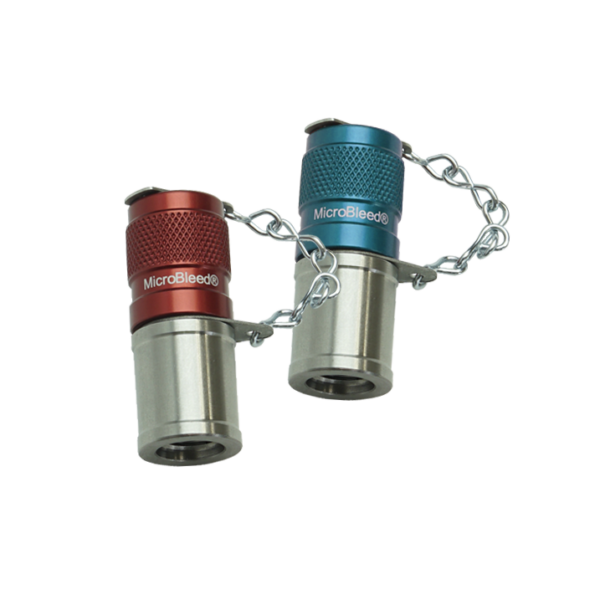

The MicroBleed valve is made with a 7/16″ SAE female port to allow for versatility. By using a standard hydraulic connector, the MicroBleed valve can be configured to numerous male or female thread configurations to suit your needs. This exclusive feature helps reduce inventory, storage space, internal part numbers, purchasing time, and associated costs.

MicroBleed valves with their unique design features make them extremely durable, reliable, and easy to use.

Product Description & Size ColorGard
STB-F
MicroBleed valve w/std. UNF female SAE
STB-F4-R
MicroBleed valve w/std. 7/16-UNF female SAE #4
Red
STB-F4-B
MicroBleed valve w/std. 7/16-UNF female SAE #4
Blue
STB-F4-G
MicroBleed valve w/std. 7/16-UNF female SAE #4
Green
STB-F
MicroBleed valve w/std. UNF female SAE
STB-F4-R
MicroBleed valve w/std. 7/16-UNF female SAE #4
Blue
